GALVANISED COILS / SHEETS

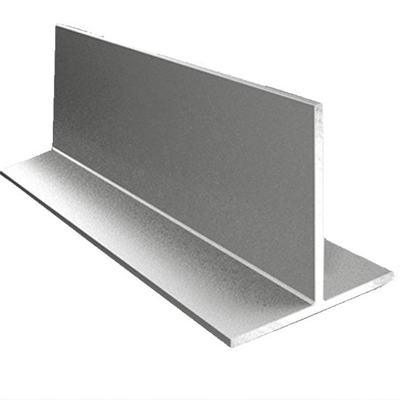

Tee Bars

40x40x6 mm upto 75x75x9 mm in Grade E 250A & E 350A

Add to Wishlist
Compare
Category:
Description

40x40x6 mm upto 75x75x9 mm in Grade E 250A & E 350A

Size Average Weight
KG/MTR KG/FT
40X40X6 3.5 1.067
50X50X6 4.5 1.372
60X40X5 3.7 1.128
65X65X6 5.8 1.768
75X75X9 10 3.049

Chemical Composition

GRADE C % Mn % S % P % Si % CE VALUE
MS E-250 A 0.23 1.50 0.045 0.045 0.40 0.42
HT E-350 A 0.20 1.55 0.045 0.045 0.45 0.47
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03

Mechanical Properties

Tensile Strength Yield Stress % Elongation at Bend Test
MIN, MPA MIN ,MPA GAUGE LENGTH 5.65 MIN
MM <20 20-40 40 MIN
MS E-250 A 410 250 240 230 23 2t
HT E-350 A 490 350 330 320 22 2t
Tolerance
