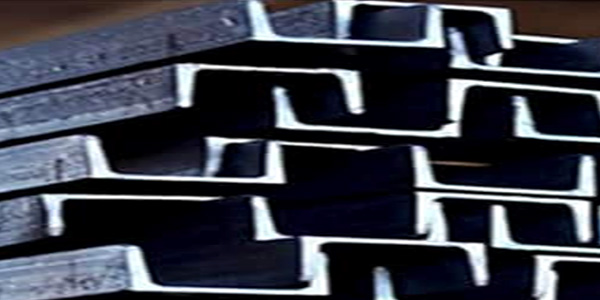

Channel

Channels are used for manufacturing of truck-trailers, EOT cranes and Gantry, escalators and elevators, ship building, factory sheds, bus body, conveyors, boilers, gricultural equipment, and construction of bridges, scaffolding and many more fabrication and engineering industries.

Size:75 x 40 mm to 400 x 100 mm

Grade: IS 2062

Add to quote
Add to Wishlist
Compare
Category:
Description

Channels ( ISLC & ISMC)

75×40 upto 200×75 in Grade E 250A & E 350A

Size Average Weight
KG/MTR KG/FT
ISMC 75X40 7.1 2.177
ISMC 100X50 9.6 2.915
ISMC 25X65 13.7 4.177
ISMC150X75 16.8 5.122
ISMC 200X75 22.3 6.799
SPECIAL LIGHT CHANNELS
SIZE AVERAGE WEIGHT
KG/MTR KG/FT
70X35 3.9 1.200
ISLC 75X40 5.7 1.738
ISLC 150X75 14.4 4.390

Rolling and Cutting Tolerance

Web Flange Sectional Weight Length
UPTO 200 MM FOR FIX LENGTH
:+/- 2.5 MM : +/- 2 MM : +/- 2.5 % :+/- 100 MM

Chemical Composition

GRADE C % Mn % S % P % Si % CE VALUE
MS E-250 A 0.23 1.50 0.045 0.045 0.40 0.42
HT E-350 A 0.20 1.55 0.045 0.045 0.45 0.47
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03

Mechanical Properties

Tensile Strength Yield Stress % Elongation at Bend Test
MIN, MPA MIN ,MPA GAUGE LENGTH 5.65 MIN
MM <20 20-40 40 MIN
MS E-250 A 410 250 240 230 23 2t
HT E-350 A 490 350 330 320 22 2t
Tolerance
